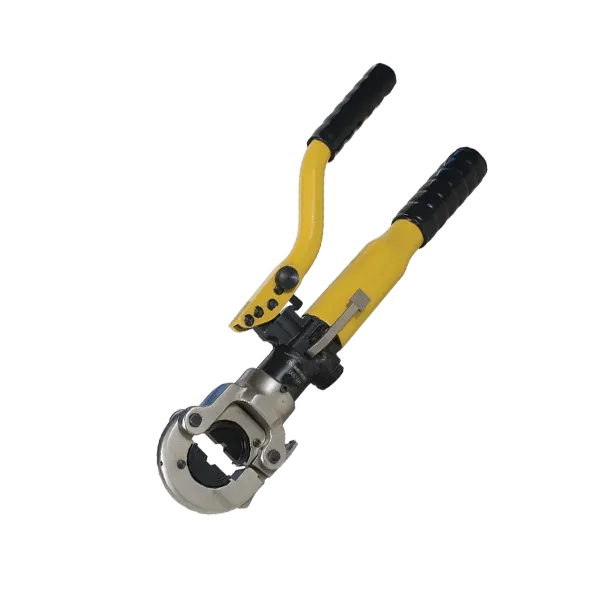

CRIMPING PLIERS HT-300

Technical characteristics:
- Crimping head turning at 360° which facilitates the crimping of static conductors
- Device for automatic monitoring of the effort at crimping completion
- Shape of the crimping element: hexahedral
- Size of the crimping element: 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300mm2
- Section of the crimped conductors:
  = Al conductors: from 16 to 300mm2
  = Cu conductors: from 16 to 240mm2
- Pressing strength: 60kN
- Lenght: 460mm

Functions:
- Crimping of aluminum or copper conductors with cable terminals or bush in the corresponding size

Advantages:
- Metal box for the instrument
- A set of congestion rings for the hydraulic cylinder
