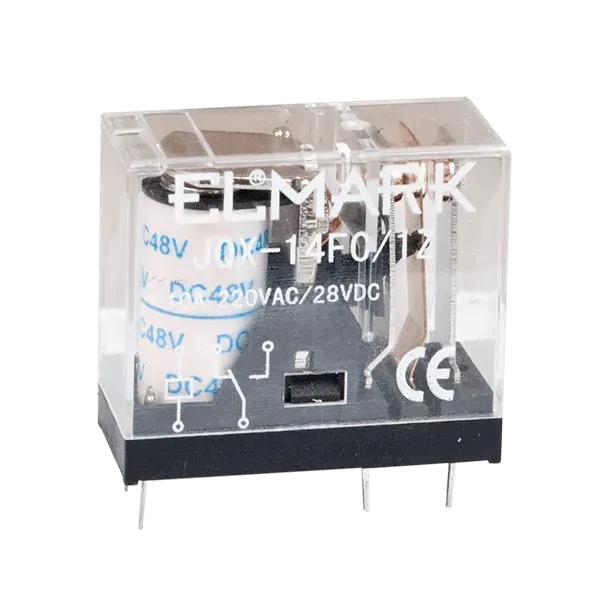

INDUSTRIAL RELAY 14FC 48VDC NO+NC

Technical characteristics:
- Power supply voltage: from 12 to 230V АС, 50 Hz and from 12 to 110VDC
- Power supply voltage tolerance: 85 - 110% Un
- Rated current of the contacts: 10А АС
- Electrical wear resistance: 1 000 000 cycles
- Insulation resistance: 500 mΩ /min (500V)
- Surge voltage wear resistance: 2000V, 50Hz
- Dielectric strength: 1000VAC / 1 min
- Activation time: 25ms
- Operating temperature: -5 - + 65°Ð¡
- Humidity: 35 - 85%RH

Mounting:
- on a DIN rail, mounted in the respective base for the model
