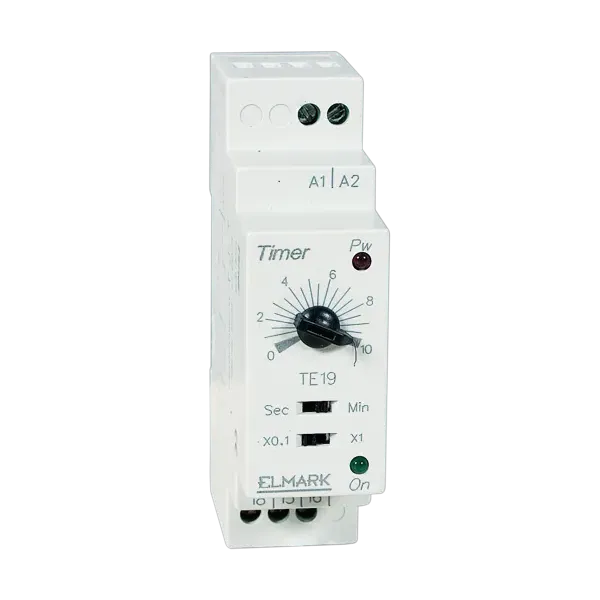

TIME RELAY TE 19

Technical characteristics:
- Power supply voltage: 230V; 50Hz
- Adjustment range for operation in star: from 1 to 600 seconds
- Repetition accuracy: ± 0.5% from the whole scale
- Adjustment accuracy: ± 5% from the whole scale
- Reset time: <0.5 seconds
- Power consumption: <5VA
- Electrical wear resistance: 100000 cycles
- Mechanical wear resistance: 1000000 cycles
- Operating temperature: -10° to 65°Ð¡
- Humidity: 45-85% RH
- Commutation capacity: up to 5А
- Indication:
  = at operation in “star”: red indication
  = at operation in “delta”: green indication
- Weight: 150g

Mounting: On a DIN rail
