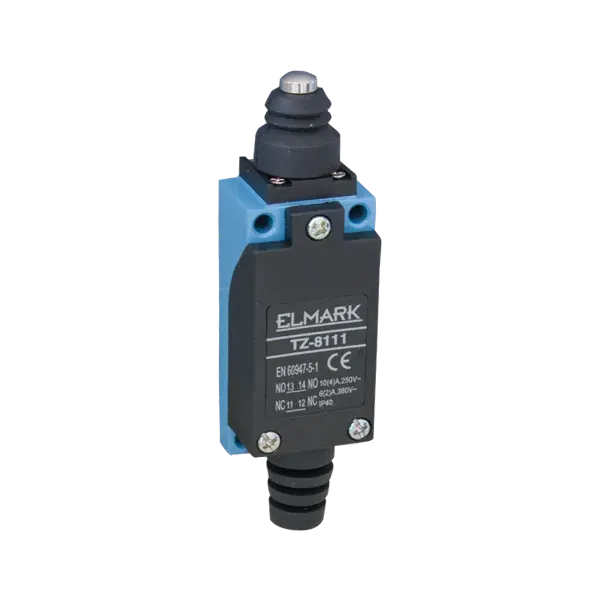

LIMIT SWITCH TZ-8111

Technical characteristics:
- Dielectric strength: 1000V AC
- Insulation resistance: 100mΩ
- Contact resistance: 25mΩ
- Electrical wear resistance (number of cycles): 500000 with active load
- Mechanical wear resistance (number of cycles): 5000000
- Gearing speed: 5mm/s to 0.5m/s
- Rated voltage: 230V
- IP code: IP40
- Cable input: cable gland PG11
- Section of the power supply conductor: up to 2.0mm
- Fastening strenght of terminals: 6-8kgf/cm

Standards: EN60947-1; EN60947-5-1
