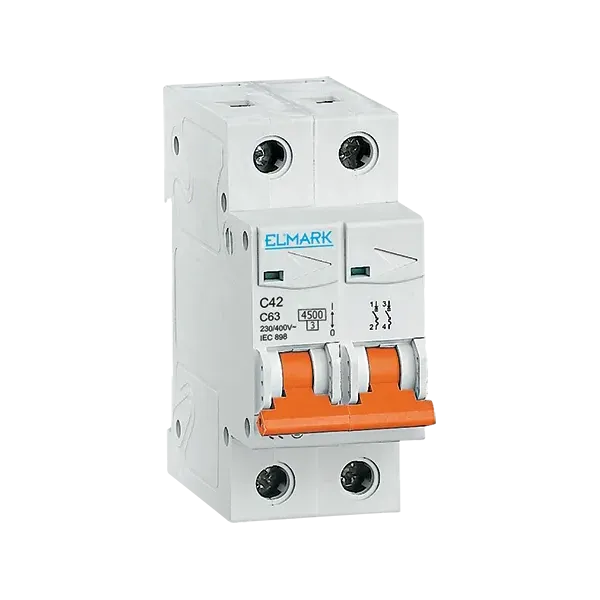

MINIATURE CIRCUIT BREAKER C42N/63A 2P CURVE C

Technical characteristics:
- Rated operating voltage: 230/400V; 50/60Hz
- Rated current: 2-63А
- Breaking capacity: 4500А
- Poles: 1, 2, 3
- Tripping curve: C
С - the maximum current release breaks between 5 and 10 In;used to protect main power supply cables and conventional consumers

- Electrical wear resistance (number of cycles ):≥4000
- Mechanical wear resistance (number of cycles):≥20000
- Limitation class: 3
- IP code: IP>20
- Ambient temperature: -5 to +65°Ð¡±2°Ð¡

Mounting: Vertical on a DIN rail

Standards: EN60898-1
