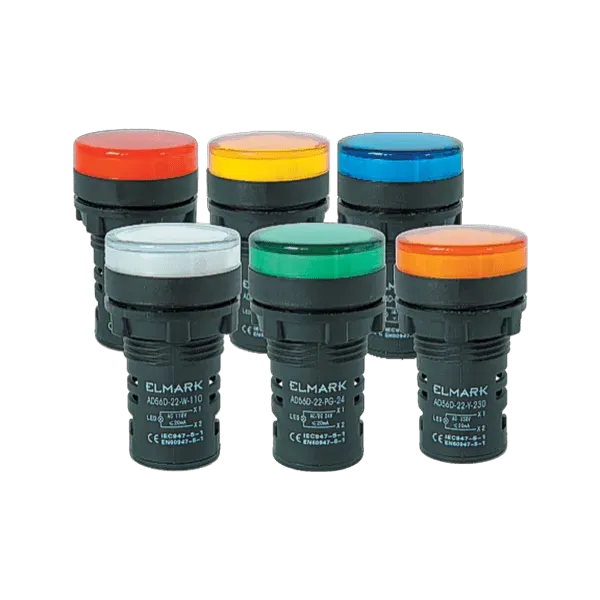

LED INDICATOR AD56D-22-B-110 BLUE 22mm 110V AC

Technical characteristics:
- Insulation voltage: 660V;50/60Hz
- Surge volatge wear resistance: 6000V
- Rated current: 6А(230V АС); 0.3А(230V DC)
- IP code: IP20
- Short circuit protection: breaker 10А gG outside of the circuit
- Mechanical wear resistance: 1Ñ…106 commutation cycles
- Operating temperature: -20° to 70°Ð¡
- Humidity: 35-85%RH
- Connecting wires torque: 0.15Nm
- Section of the conductor: 1Ñ…0.5; 1Ñ…0.75; 1Ñ…1; 1Ñ…1.5; 1Ñ…2.5mm2

Mounting:
- To a flat metal or plastic surface with thickness: max 4m
- Size of the opening: Ø22.5mm

Standards: EN60947-1; EN60947-5-1
