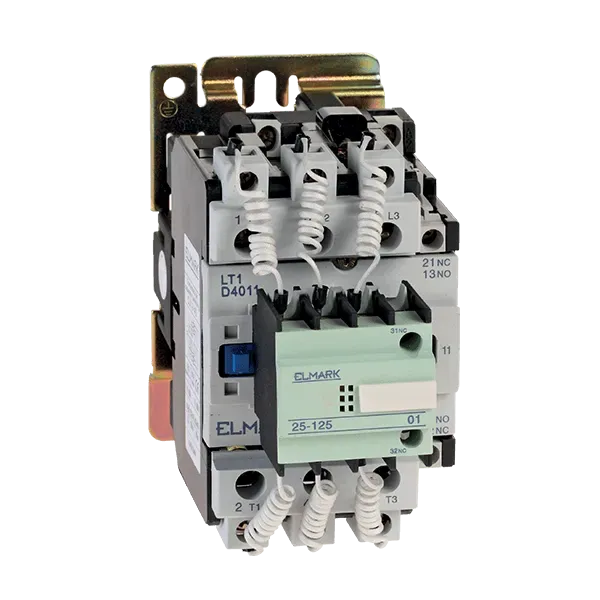

CONTACTOR CJ19-115 DPK 230 115A

Technical characteristics of CJ19-43:
- Rated current: 32-170A
- Operation class: AC6
- Insulation voltage: 690V
- Rated operating voltage of the coil: 230V АC;50/60Hz
- Surge voltage wear resistance: >8000V
- Electrical wear resistance (number of cycles): ≥300000
- Mechanical wear resistance (number of cycles): ≥1000000
- Number of cycles (switching on) per hour: up to 600
- Number of the contacts :3 NO power contacts + 1 NO operative
- Leaking power: up to 13W
- Operating temperature: -10 to 65ºÐ¡
- Maximum altitude: 2000м

Advantages:
- Material: resistant to UV rays, self-extinguishing
- High reliability of the current parameters
- Secure separation of the power contacts
- Secure part of the contactor against contact with the consumer
- Manual switching on is not available

Functions:
- Switching on/off of capacitors for reactive energy compensation
- Developing of systems for compensation of reactive energy
- Lowering of peak transitional currents at switching on and switching off the capacitors

Applications:
- Industry
- Administrative and public buildings

Mounting: On DIN rail or using bolts to a flat surface in a vertical position with maximum gradient of ±5°

Standards: EN60947-1; EN60947-4-1; LVD; EMC
