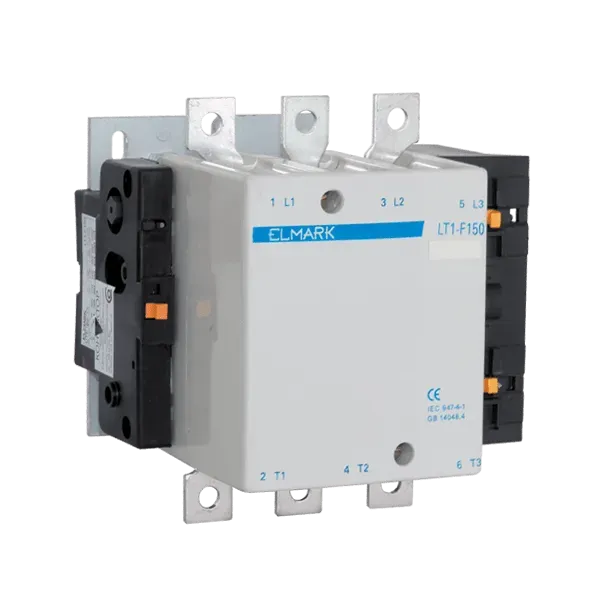

CONTACTOR LT1-F 630A 400V 1NO

Technical characteristics:
- Operation class: АС3
- Rated operating voltage of power contactors: up to 1000V;50/60Hz
- Rated current: 115-800А
- Surge voltage wear resistance: >8000V
- Rated operating voltage of the coil: 12/24/36/48/110/230/400
- Electrical wear resistance (number of cycles): ≥10000000
- Mechanical wear resistance (number of cycles): ≥10000000
- Number of cycles (switching on) per hour: 200
- Power dissipation per pole: from 16 to 80W
- Ambient temperature: -10º ÷65ºÐ¡
- Maximum altitude: up to 2000м

Advantages:
- High reliability of the current parameters
- Secure separation of the power contacts
- Resistant to UV rays
- Easy mounting
- Long life

Functions:
- Frequently switching ON/OFF of electrical circuits under load
- Developing of systems for control of consumers
- Operational element in control boards
- Protection of loads and electrical devices in production and exploitation
- Control of motors in normal or heavy operating environments

Applications:
- Industry
- Building construction
- Administrative and public buildings

Mounting: On a DIN rail or using screws to a flat surface in a vertical position with maximum incline of ±5°

Standards: EN60947-1; EN60947-4-1; EMC
