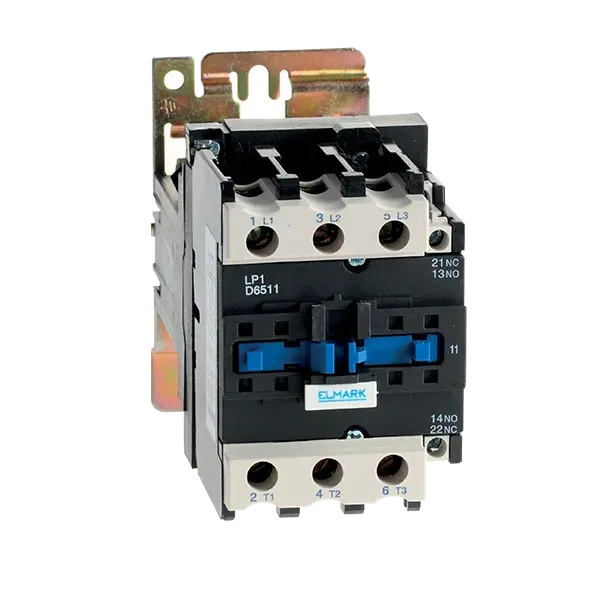

DIRECT CURRENT CONTACTOR LP1-D 36VDC 1NO+1NC

Technical characteristics:
- Rated current: 9-225А
- Rated operating voltage of the controlling coil: 12V DC to 220V DC
- Rated operating voltage of the power circuit: up to 690V DС
- Insulation voltage: 690V
- Surge voltage wear resistance: >8000V
- Electrical wear resistance (number of cycles): ≥10000000
- Mechanical wear resistance (number of cycles): ≥10000000
- Number of cycles per hour: 1200pcs up to 32А; 600pcs for 40-95А
- Ambient temperature: -10° to 65ºÐ¡
- Maximum altitude: up to 2000m
